Creating a Line-Item
Add a line-item to an assumption, choosing which simulation nodes it applies to and whether each one is absolute or relative.
- To add a Line-Item to your assumption, click on the “+” button on an assumption.

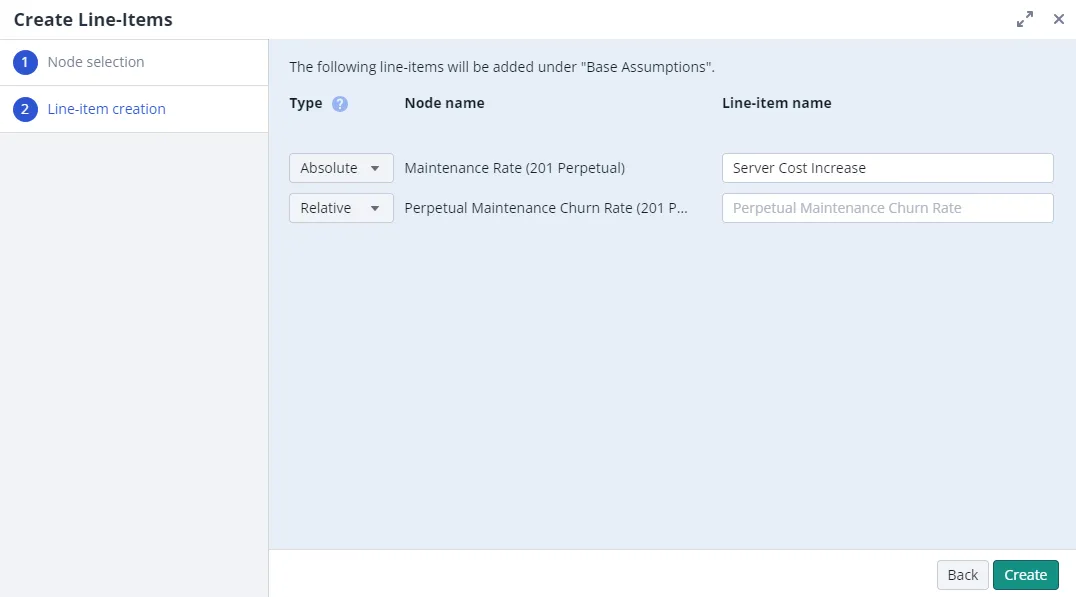

- In the first step to create a Line-Item, you can select one or multiple simulation nodes for which you wish to create line items.
- All line items are “Absolute” by default. In the next step you can mark some or all as “Relative” as well as assign a name for each line item.
- Click ‘create’ to create the defined line items.
Absolute Line-Item
- Used to enter absolute values as the change to your base data
- Has a fixed dimensionality which cannot be changed
Relative Line-Item
-
Used to enter relative values as the change to your base data
-
The dimensionality of a relative Line-Item can be adjusted
- In a relative Line-Item it is possible to select a hierarchically higher level in the dimensionality, which will aggregate the lower level values into the new level E.g. The Line-Item is based on ‘Months’ in the ‘Time’ dimension. By changing the dimensionality and selecting ‘Year’ from the ‘Time’ dimension, all the values from ‘01-2023’ till ‘12-2023’ will be aggregated to ‘2023’.
Whether a line-item is absolute or relative is a property of the line-item, not of the node. A percentage unit on the node does not make changes to it relative, and it is not a prerequisite for creating a relative line-item.
A relative line-item needs something to scale
A relative line-item multiplies the node’s calculated value. If that value is 0, the result stays 0 and the line-item appears to do nothing. This is the normal case on a model kept deliberately neutral, where the node computes something like
EXPAND(0, ...)and all the movement is meant to come from the Scenario Manager.Adding an absolute line-item to the same node does not help. Relative line-items are applied to the node’s own value first and absolute ones are added afterwards, so the relative one never sees the absolute change. Either use an absolute line-item, or give the node a base value for the relative one to scale.
